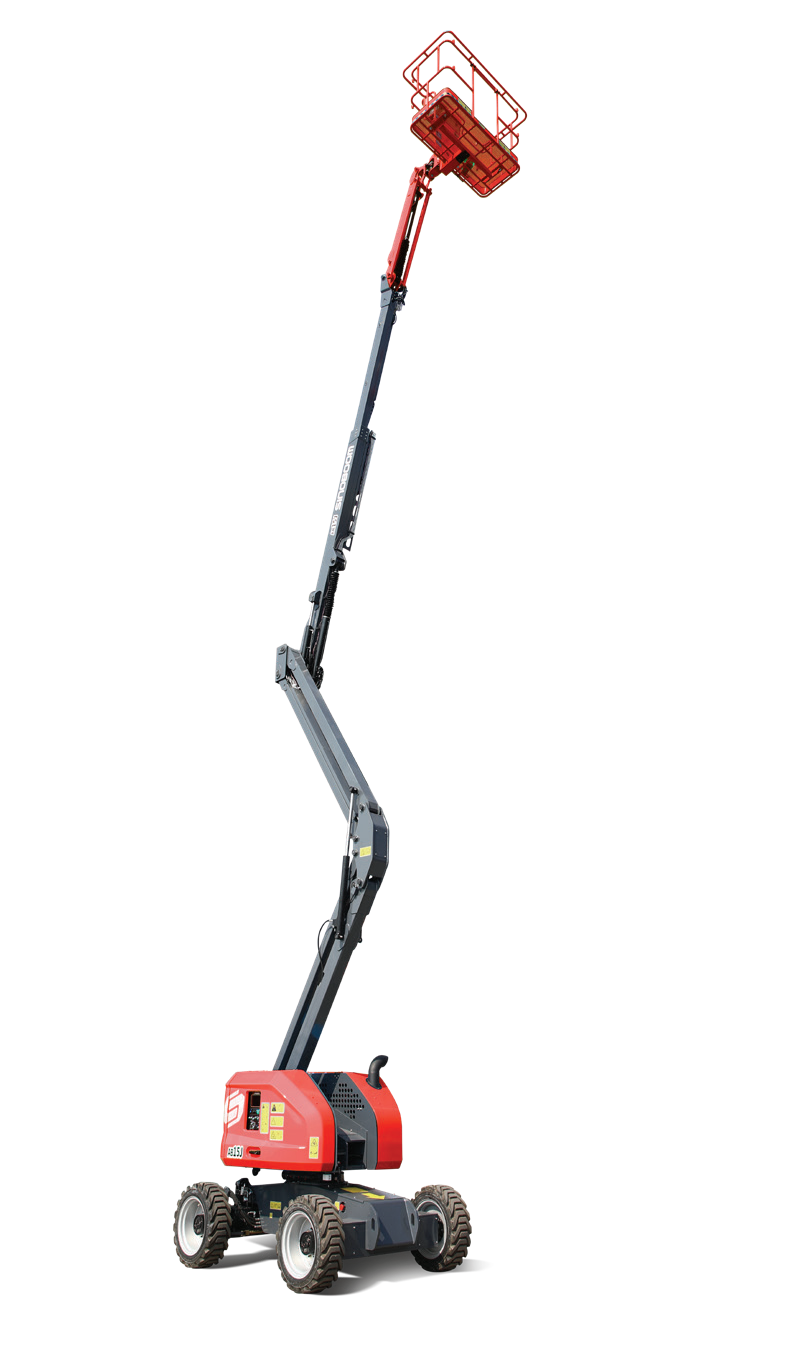

AB480J
Articulating Boom Lift
Working Height
54’3″
Platform Capacity
551 lb
PRODUCT
HIGHLIGHTS
Suitable for narrow spaces
- Narrow width with zero tail sweep
Operating efficiency
- The working platform can be lifted and lowered to any position without need
to operate the secondary arm
Reliable
- Full-time oscillating front axle allows for all tires to stay in contact with the ground to increase over-all terrainability
Precision performance
- Fully proportional joystick controls provide excellent control and maneuverability
DIMENSIONS
Max Working Height
54’3″
Length-Stowed
24’1″
Wheelbase
6’8″
Max Platform Height
48’3″
Width-Stowed
7’5″
Ground Clearance
.1’1″
Max Horizontal Extension
27’11”
Height-Stowed
7’3″
Platform Dimensions (LxWxH)
6’×2’9″×3’7″
PERFORMANCE
Platform Capacity (Unrestricted)
551lb
Platform Rotation Angle
160 degrees
Gradeability (2WD/4WD)
30% / 40%
Turntable Tailswing
0
Platform Occupants
2 persons
Drive Speed-Stowed (4WD/2WD)
3.12mph/4.4mph
Turning Radius (Inside)
5’11”
Tilt Rating
5°
Turntable Rotation
355 degrees
Drive Speed-Raised
0.7 mph
Turning Radius (Outside)
14’9″
Tires Spec/Type
315/55D20 (Foam-filled)
POWER
Drive x Steering
4 WD (2 WD)X2 WS
Engine
36.3 kW/2800 rpm/D2011L3I/Deutz/EU Stage 3A ,EPA Tier 3
System Voltage
12V DC
Diesel Tank Capacity
14.5 gal (12.1 gal (UK)/55 L)
Weight (2WD/4WD)
15,609 lb / 16,050 lb
Hydraulic Tank Capacity
23.8 gal (19.8 gal (UK)/90 L)
Standards Compliance
ANSI/CSA
STANDARD FEATURES
- Manual storage box
- Fully proportional joystick controls
- Automatic platform leveling
- Tilt protection system
- Flashing beacon
- Function-enble foot pedal
- Foam-filled non-marking tires
- 7-in color display screen
- Hydraulic cylinder protective sleeves
- 160° Platform rotation
- Max tilt rating to 5°
- Horn & buzzer
- 6′ (1.83m) platform
- 4WD × 2WS
- 4-wheel brake
- Weighing system
- Anti-crush system in platform
- Emergency lowering system
- Fault diagnosis system
- AC power to the platform
OPTIONAL FEATURES
- Half mesh (For platform with swinging gate)
- Platform work lights
- Glazier kit (For platform with swinging gate)
- Solid tires
- Anti-crush device
- Telematics
- 4’9″(1.45m) platform
