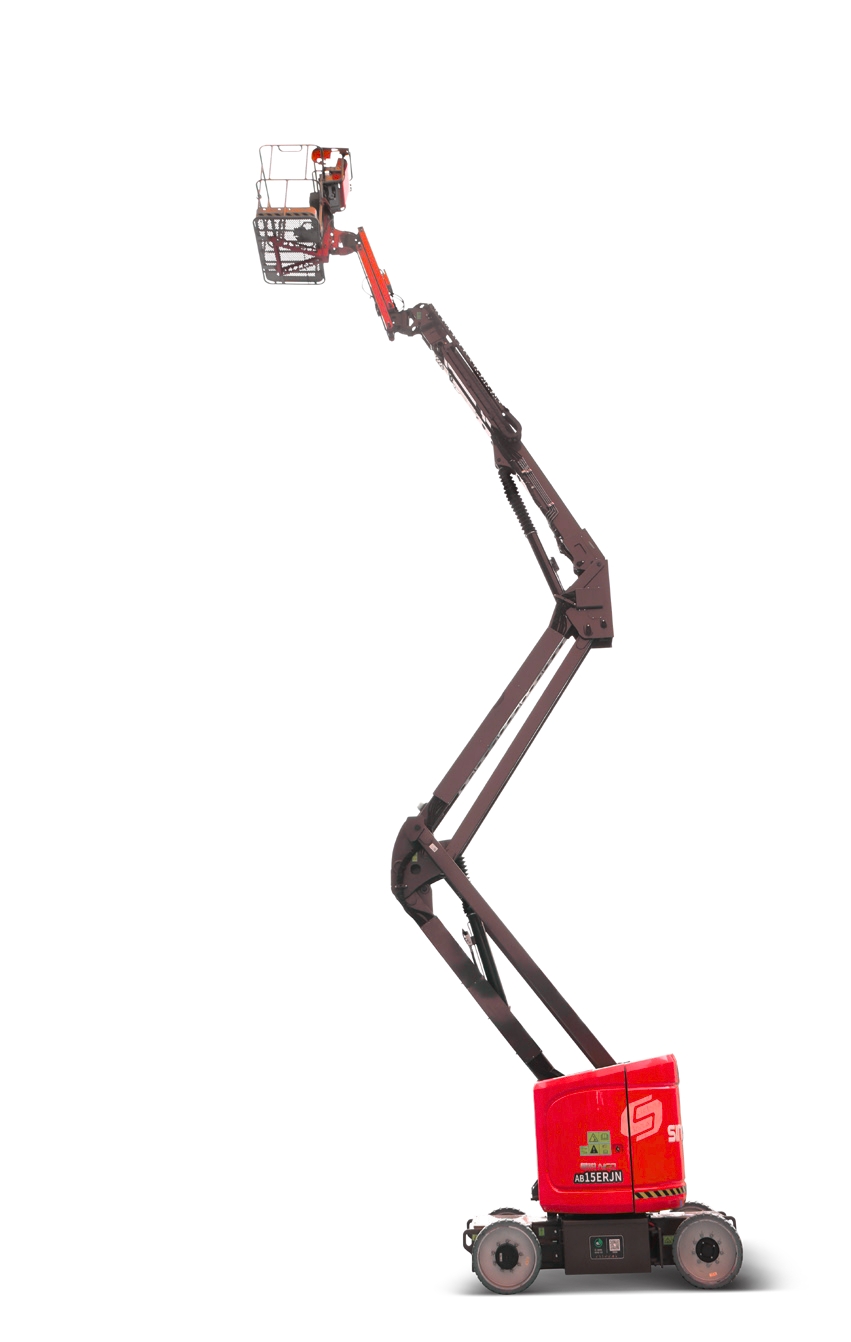

AB490ERJN
Articulating Boom Lift
Working Height
54’7″
Platform Capacity
507 lb
PRODUCT
HIGHLIGHTS
Outstanding Performance
- Industry leading platform capacity of 507lb (230kg)
- Fully proportional joysticks offer smooth and precise operation
- AC drive motors offer high efficiency and maintenance free operation
Flexible Operation
- Small compact design allows for standard double door entry and easy maneuverability
in confined jobsites - Rotating jib allows overhead access into the most congested work areas
- Zero Tail-Swing allows for operation up against obstacles
Energy-saving and Environmentally Friendly
- Emission-free operation for the most sensitive work environments
- Electric boom functions and AC drive systems provide excellent run times
DIMENSIONS
Max Working Height
54’7″
Length-Stowed
22’11”
Wheelbase
5’9″
Max Platform Height
48’7″
Width-Stowed
4’11”
Ground Clearance
.5.3″
Max Horizontal Outreach
23’4″
Height-Stowed
6’6″
Platform Dimensions (LxWxH)
55.1″×31.5″×43.3″
PERFORMANCE
Platform Capacity
507lb
Platform Rotation Angle
180 degrees
Gradeability
25%
Turntable Tailswing
1.4″
Platform Occupants
2 Persons
Drive Speed-Stowed
3.7mph
Turning Radius (Inside)
2’11”
Tilt Rating
3°
Turntable Rotation
355 degrees
Drive Speed-Raised
0.4 mph
Turning Radius (Outside)
9’10”
Tires Spec/Type
600×190 (non-marking,solid)
POWER
Drive x Steering
2WDx2WS
System Voltage
12 V DC
Batteries
48V / 390Ah（lead acid battery）
48V / 315Ah（lithium battery）
Weight
18,739 lb
Hydraulic Tank Capacity
8.8 gal (UK)/10.6 gal (US) (40L)
Standards Compliance
ANSI/CSA
STANDARD FEATURES
- Hydraulic platform leveling
- Hydraulic cylinder protective covers
- Tilt protection system
- Emergency stop system
- AC power to the platform
- 180° platform rotation
- 100° jib rotation
- Weighing system
- Emergency lowering system
- Horn and buzzer for safety warning
- Max tilt rating to 3°
- Flashing beacon
- Fault diagnosis system
- Rear position and travel confirmation
- Manual storage box
OPTIONAL FEATURES
- Anti-collision device
- Platform work lights
- Tool box
- Platform guard rail
- Telematics
- Platform with swing gate
- White noise alarm
