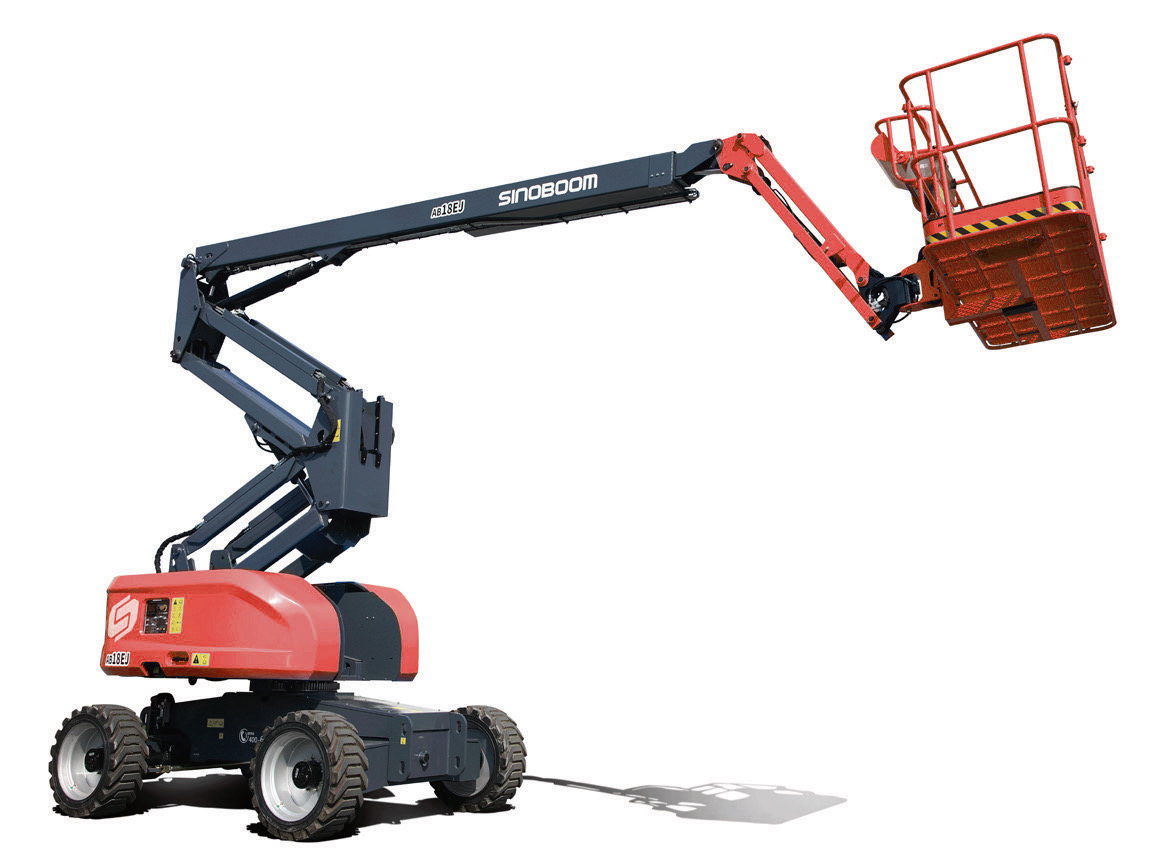

AB600EJ
Articulating Boom Lift
Working Height
65’8.5″
Platform Capacity
507 lb
PRODUCT
HIGHLIGHTS
Excellent for both Indoor and Outdoor applications
- Smooth off-road capabilities with quiet electric drive motors for indoor and outdoor applications
- 4WD, 40% gradeability
- Full-time oscillating front axle keeps all tires on the ground and provides excellent terrain capability
Excellent Performance, Safety and Reliability
- Smart 5″ color display for easy machine status and fault diagnosis
- Auxiliary powered emergency lowering system
- Rexroth controllers in both upper and lower control boxes
Comfortable and efficient
- The primary and secondly booms are equipped with angle sensors to automatically reduce speed and enhance overall safety
- Proportional steering speed reduction technology ensures safer driving without platform acceleration
DIMENSIONS
Max Working Height
65’8.5″
Length-Stowed
28’6.5″
Wheelbase
8’2″
Max Platform Height
59’8.5″
Width-Stowed
8’2″
Ground Clearance
1’6″
Height-Stowed
8’4.8″
Platform Dimensions (LxWxH)
8’x3’x3’7″
PERFORMANCE
Platform Capacity (Unrestricted)
507lb
Platform Rotation Angle
180 degrees
Gradeability
40%
Turntable Tailswing
2’7.5″
Platform Occupants
2 persons
Drive Speed-Stowed
4mph
Turning Radius (Inside)
7’10.5″
Tilt Rating
5°
Turntable Rotation
355 degrees
Drive Speed-Raised
0.68 mph
Turning Radius (Outside)
18’2.5″
Tires Spec/Type
355/55D625 Foam-filled
POWER
Drive x Steering
4WDx2WS
Batteries
48 V, 390 Ah (lead acid battery)
Control Voltage
12V DC
Weight
18,298 lb
Hydraulic Tank Capacity
15.4 gal (UK)/18.5 gal (US) (70L)
Standards Compliance
ANSI/CSA
STANDARD FEATURES
- Full-time active oscillating front axle
- Fully proportional joystick controls
- Automatic platform leveling
- Tilt protection system
- Flashing beacon
- Foam-filled non-marking tires
- AC power to the platform
- 5-in display screen
- Hydraulic cylinder protective sleeves
- Max tilt rating 5°
- Horn & buzzer
- Function-enabled foot pedal
- 8′ (2.44m) platform
- 4WD x 2WS
- Emergency lowering system
- Weighting system
- Anti-crush system in platform
- Fault diagnosis system
- Manual storage system
OPTIONAL FEATURES
- 6′ (1.83m) work platform
- Secondary guarding device
- Telematics
- Half mesh (for platform with swinging gate)
- Solid tires
- 6′ (1.83m) / 8′ (2.44m) platform with swinging gate
- Overhead anti-collision device
- 4’9″ (1.45m) platform
- Platform work lights
- Glazier kit (for platform with swinging gate)
