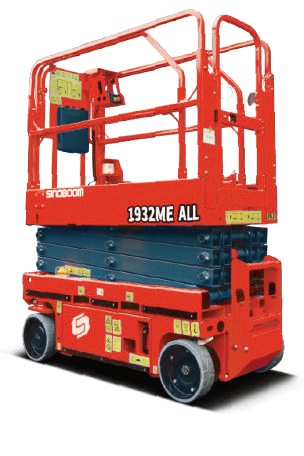

Home 9 Electric Scissor Lift – 1932ME-ALL

1930ME ALL

Electric Series Scissor Lift

Working Height

19′

Platform Capacity

lbs

PRODUCT

HIGHLIGHTS

HYDRAULIC OIL FREE & ENVIRONMENT-FRIENDLY

  • Zero hydraulic components used makes machine hydraulic oil free, clean operation with zero risk of hydraulic oil leak in job sites
  • Zero emissions, low noise and environment-friendly, ideal for stringent working environment such as data center, dust-free workshop and hospital etc

HIGH EFFICIENCY

  • Energy-recycling is a typical feature, when the platform is descending it consumes less energy and runs for longer time, greatly improving work efficiency
  • Side forklift pockets design makes it flexible and greatly improves transfer and transportation effeciency

LOW COST & MAINTENANCE OPERATION

  • Universal components from E-drive slab scissors are used on this machine decreases total cost of ownership
  • AC brushless drive motor and AGM maintenance free batteries come as standard
  • Unique bumper rails will protect decals and paint well making machine look like new

DIMENSIONS

Max Working Height

19′

[C] Length-Stowed

5’11”

[E] Height-Stowed Rail Unfolded

6’2″

Ground Clearance (Pothole Guard Stowed)

3″

[A] Max Platform Height

25’7″

[D] Width-Stowed

2’7″

Height-Stowed Fixed Rail

Ground Clearance (Pothole Guard Deployed)

0.95″

[B] Max Horizontal Extension

3′

Height-Stowed Rail Folded

7′

[F] Wheelbase

4’4″

Platform Dimensions (LxWxH)

5’4.6″ x 2’6″ x 3’7″

PERFORMANCE

Platform Allowable Occupants (Indoor/Outdoor)

2 Persons/1 Person

Drive Speed-Stowed

2.5mph

Descent Time (Unloaded)

25s~30s

Tilt Rating (Front to Back/Side to Side)

3/1.5°

Platform Capacity

507lbs

Drive Speed-Raised

0.3mph

Gradeability

25%

Tires-solid

12.7×4″

Lift Extension Capacity

Elevation Time (Unloaded)

25s~30s

Turning Radius (Inside/Outside)

0/5’3.78″

POWER

Batteries

24V/220Ah

Charger Input

100~240V AC

Power Source

24V DC

Charger Output

30A

Drive Mode

Motor, front-wheel

Hydraulic System Capacity

2.9 gal

Weight (Indoor/Outdoors)

3,473lbs

Weight(Indoor Only)

3,527 lbs

Standards Compliance

ANSI/CSA

Floor Loading (maximum ground pressure)

STANDARD FEATURES

  • 2WD x 2WS
  • Non-marking tires
  • Emergency stop system
  • Flashing beacon
  • Maintenance-free battery
  • Proportional control
  • Electrophoretic painting
  • Side/rear forklift pockets
  • Fault diagnosis system
  • Emergency lowering system
  • Tilt protection
  • Lifting & tie down points

OPTIONAL FEATURES

  • Overhead anti-collision device
  • Platform work light
  • Footswitch
  • RCBO
