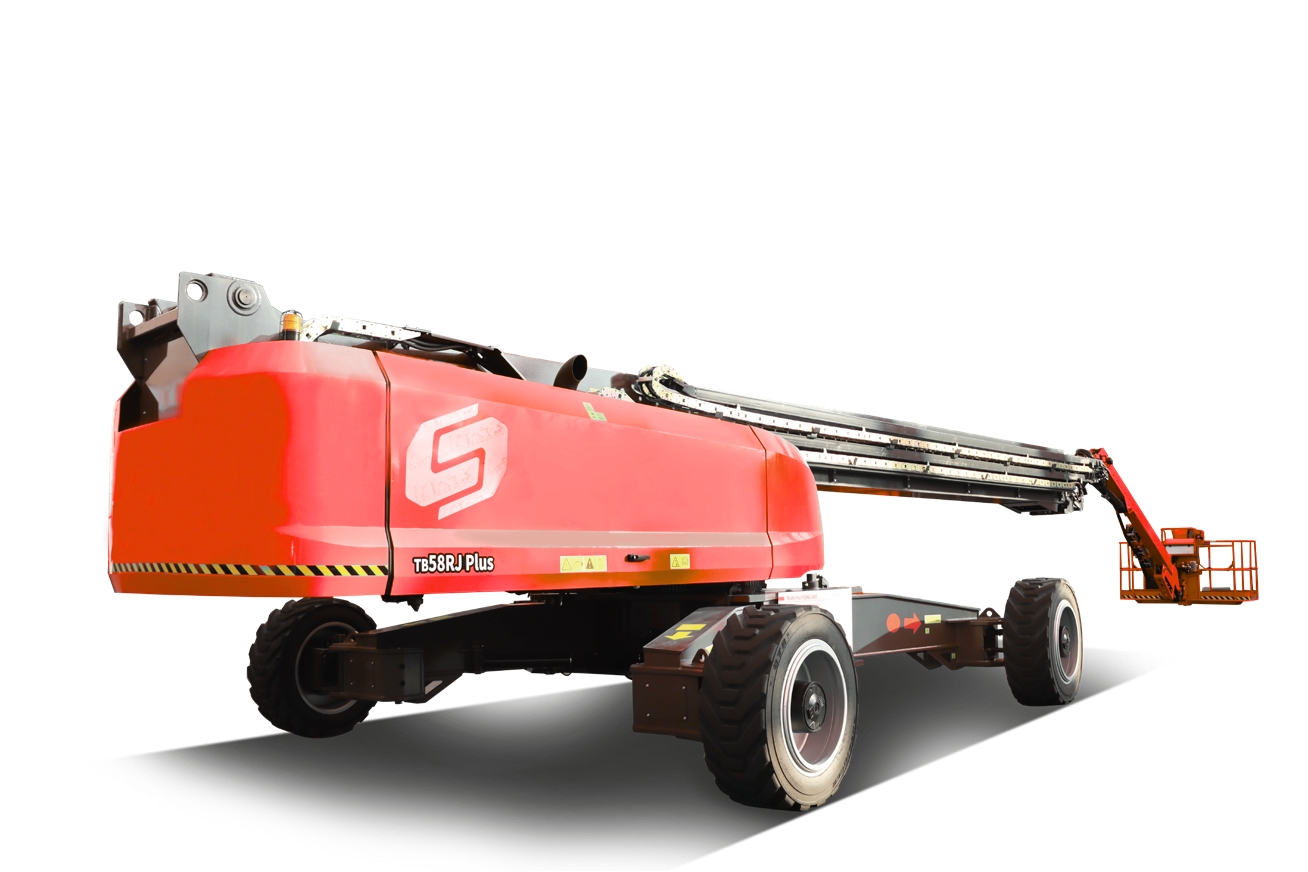

TB1900RJ Plus
Telescopic Boom Lift
Working Height
196′
Platform Capacity (Restricted/Unrestricted)
1000 lb/
661lb
PRODUCT
HIGHLIGHTS
Superior Platform Height
- Highest platform height in the industry
Superior Outreach
- Best horizontal outreach in its class
Intelligent Maintenance
- Industry-leading 7″ color screen displays standard with Deutz fault codes and status information for easy reference and reducing downtime. Operators can complete
tasks under the remote guidance of qualified service technicians. Convenient for fleet managers to quickly access live machine and maintenance information
Safe and Reliable
- Equipped with a Rexroth safety controller with dual backup CPUs and compliant with ISO 13849, combined with dual-channel sensors offering extremely safe redundancy
DIMENSIONS
Max Working Height
196′
[A] Length-Stowed
65’10”
[D] Wheelbase
15′
Max Platform Height
190′
[B] Width
8’2″
Ground Clearance
1’1″
Max Horizontal Extension (Unrestricted/Restricted)
82’/ 70’11”
[C] Height-Stowed
10’2″
Platform Dimensions (LxWxH)
8′ x 3′ x 3’7″
PERFORMANCE
Platform Capacity (Unrestricted)
661lb
Platform Rotation Angle
160 degrees
Gradeability
45% (4WD)
Turntable Tailswing
11’9″
Platform Capacity (Restricted)
1000 lb
Drive Speed-Stowed
2.8 mph
Turning Radius (Inside)
7’5.8″
Tilt Rating
5°
Turntable Rotation
360 degrees/continuous
Drive Speed-Raised
0.3 mph
Turning Radius (Outside)
21’5.5″
Tires Spec/Type
445/50D710 24PR (Foam-filled)
POWER
Drive x Steering
4WDx2WS
Fuel Tak Capacity- Diesel
44 gal
System Voltage
12V DC
Engine
Deutz T4f 99hp (74.4kw) Diesel Engine
Hydraulic Tank Capacity
89.1 gal
Batteries
Weight
60,848 lb
Floor Loading (maximum ground pressure)
–
Standards Compliance
ANSI/CSA
STANDARD FEATURES
- Fully proportional joystick controls
- Automatic platform leveling
- Tilt protection system
- Flashing beacon
- Manual storage box
- Max tilt rating to 5°
- Secondary guarding device
- 7″ Color display screen
- Hydraulic cylinder protective covers
- 160° platform rotation
- 170° jib rotation
- Horn & buzzer
- 8′ (2.44 m) platform with swinging gate
- AC power to the platform
- 4WDx2WS
- Weighing system
- Emergency stop system
- Auxiliary Emergency lowering system
- Fault diagnosis system
- Foam-filled tires
OPTIONAL FEATURES
- Glazier kit (For platform with swinging gate)
- Half mesh (For platform with swinging gate)
- Platform work lights
- Telematics
- Overhead anti-collision device
- Foam-filled non-marking tires
